How deep is the foundation for a wind turbine?

Wind turbines foundation design is an art (and a job) by itself. Here you have a very quick overview of the process for shallow foundation (Patrick & Henderson foundation, widely used in the USA, follow a totally different approach). The inputs for the foundation design are the result of the geological survey and the design loads.

What does the foundation do in a wind turbine?

This foundation eliminates the need for soil cover and takes advantage of high strength rock at the surface.Apr 5, 2010

What are the common foundations used to support offshore wind turbines?

Wind Turbine Towers

In shallow waters, gravity type and monopile type foundations are used commonly. Monopile type foundation is used most commonly rather than the gravity type foundation.

What is a monopile foundation?

The mono pile foundation is a simple construction. The foundation consists of a steel pile with a diameter of between 3.5 and 4.5 metres. ... The mono pile foundation is effectively extending the turbine tower under water and into the seabed.

How many yards of concrete do I need for a wind turbine?

But hidden from view below ground are the massive concrete foundations that keep wind turbine towers upright. These poured-in-place foundations are 10-20 feet thick, 60 feet in diameter, weigh almost two million pounds, and use 40 truckloads of concrete, or approximately 400 cubic yards.Apr 14, 2021

How many tons of concrete are in a wind turbine?

Building one wind turbine requires 900 tons of steel, 2,500 tons of concrete and 45 tons of plastic.Aug 6, 2019

What is the base of a wind turbine made of?

According to a report from the National Renewable Energy Laboratory, wind turbines are predominantly made of steel (71-79% of total turbine mass); fiberglass, resin or plastic (11-16%); iron or cast iron (5- 17%); copper (1%); and aluminum (0-2%).

How deep do offshore wind turbines go?

Currently, fixed foundation offshore wind turbines can be installed up to around 50 metres (160 ft) of sea depth. Beyond that, floating foundation turbines would be required, potentially allowing installation at depths of up to one kilometre (3,300 ft) based on currently proposed technologies.

How wide is the base of a wind turbine?

Each wind turbine is 262 feet high and the tower has a diameter of 14 feet. The blades of the wind turbines are 120 feet long so that the total height from the ground to the tip of the blade is more than 380 feet, approximately the height of a 32-story building.

What is currently the most used offshore wind foundation type?

Most offshore wind installations to date (accounting for 80% of installed capacity worldwide) have used monopile foundations, which are cylindrical structures driven into the seafloor and attached to the bottom of the wind turbine tower.Dec 19, 2017

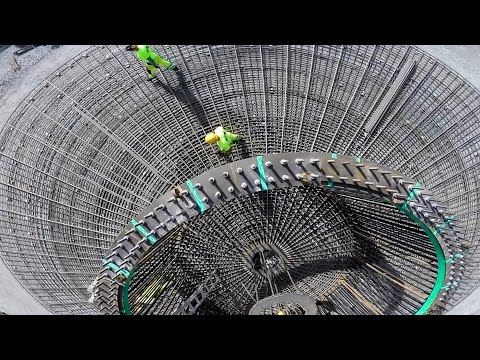

image-How deep is the foundation for a wind turbine?
image-How deep is the foundation for a wind turbine?

What are offshore wind turbine foundations made of?

Designed from precast concrete and suitable for sites to depths up to 30 m, gravity-based foundations (GBFs) use gravel, sand or stones for ballast. Uses lower-cost materials like concrete and steel.Jan 4, 2021


How are wind turbines anchored at sea?

While most offshore wind turbines are anchored to the ocean floor on fixed foundations, limiting them to depths of about 165ft, floating turbines are tethered to the seabed by mooring lines. These enormous structures are assembled on land and pulled out to sea by boats.Aug 29, 2021


How are monopiles installed?

The installation of a monopiles is normally carried out by using a bottom supported platform (e.g., a jack-up vessel) which holds the pile at the correct location vertically while driving it into the seabed.Feb 1, 2016


Where are monopiles made?

New Jersey trailblazes with monopile factory to supply US offshore wind industry. The state of New Jersey is investing in a $250 million manufacturing facility to build steel components, known as monopiles, for offshore wind turbines. It will serve the entire US offshore wind industry.Dec 23, 2020


What is offshore wind monopile?

An offshore wind turbine consists of a wind turbine installed on top of a support structure and foundation. ... As of today, monopiles supporting 6 MW wind turbines have been designed for water depth up to 35 m, including those recently constructed for the Gode Wind Offshore Wind Farm and shown in figure 3.Feb 28, 2015


What are the disadvantages of a wind turbine?

  • The most hated disadvantage to wind turbines is the noise they produce. The sound produced by one turbine can be perceived from far distances. Combine many turbines, and the noise becomes unbearable. Many homeowners’ lives have been turned upside down due to the noise pollution from turbines.


How do you make wind energy?

  • Wind energy is created when moving air causes a wind turbine to rotate, powering a motor that generates electricity. The energy of the wind itself derives from differential heating of the air by the sun and the rotation of the Earth, combined with landscape features which shape the air flow.


Are wind turbines sustainable?

  • Wind power is a sustainable form of energy. The energy and materials cost of a wind turbine is recovered after about six months of operation and emissions during operation are environmentally neutral except for a limited local impact. When a wind turbine has been used up, after about 20 years, all components are recovered for recycling and all...


How does a wind turbine help us?

  • Wind Turbines Helping the Environment Wind Turbines have blades, just like an electric fan, but instead of using electricity to generate wind, the turbines do just the opposite. Wind rotates the blades, which spin a shaft connected to a generator and the movement leads to the generation of electricity.


What are the different types of foundations for wind turbine tower?What are the different types of foundations for wind turbine tower?

For onshore wind turbine tower, there are basically 5 common types of wind tower foundations: the shallow mat extension, the ribbed beam basement, the underneath piled foundation, the uplift anchors and the new type.


What is wind turbine tower?What is wind turbine tower?

Wind turbine tower is a typical high-rise structure building. The average wind tower height on earth is around 90m – 130m. The wind turbine foundation bears the load transmitted from the wind turbine tower and the turbine on the top, especially the huge overturning moments.


What are the characteristics of round shaped shallow mat wind turbine tower?What are the characteristics of round shaped shallow mat wind turbine tower?

The round shaped shallow mat type wind turbine tower foundation includes three parts: the basement, the mat, and the central pillar. The pros: this module is easy to build, the construction period is short, it can be used widely for a large range of wind turbine tower capacity. Suitable for the plain area and hilly land.


How do you determine the structural integrity of a wind turbine?How do you determine the structural integrity of a wind turbine?

Following the IEC-61400, the design load cases used to verify the structural integrity of a wind turbine shall be calculated by combining: Normal design situations and appropriate normal or extreme external conditions; Transportation, installation and maintenance design situations and appropriate external conditions.
