What is balance modulator circuit?
What is balance modulator circuit?

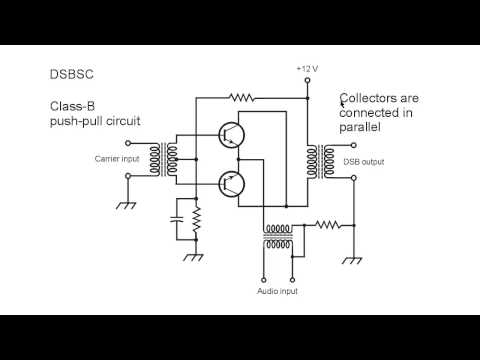

In electronic communications, a balanced modulator is a circuit that produces double-sideband suppressed-carrier (DSBSC) signals: It suppresses the radio frequency carrier thus leaving the sum and difference frequencies at the output. ... This results in power saving during signal transmission.Jan 3, 2021
What is balanced modulator?
A balanced modulator mixes the audio signal and the radio frequency carrier, but suppresses the carrier, leaving only the sidebands. The output from the balanced modulator is a double sideband suppressed carrier signal and it contains all the information that the AM signal has, but without the carrier.
What is a balanced modulator an example of?
Balanced Modulator [Ring Modulator]
Balanced or ring modulation is a special type of amplitude modulation, where one bipolar (swinging both above and below 0 volts) signal – the modulator – is used to vary the amplitude of a second bipolar signal, known as the carrier.Nov 16, 2016
What is the advantage of balanced modulator?
As we take a closer look, we find that balanced modulators suppress the unwanted carrier in an amplitude modulated (AM) wave and only produce sidebands. Along with eliminating the carrier, a balanced modulator also provides efficient use of power.Mar 12, 2020
What are the applications of balanced modulator?
These devices were designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.
Is balanced modulator and ring modulator same?
Balanced modulator can be generated by using 2 nonlinear resistance device so that the carrier signal gets suppressed at the receiver . Instead of using 2 nonlinear devices or diodes, ring modulator uses 4 nonlinear devices or diodes. That's why the ring modulator is known as double balanced modulator.
What are the two inputs of balanced modulator?
Modulators (sometimes called balanced modulators, doubly balanced modulators, or even on occasions high level mixers) can be viewed as sign-changers. The two inputs, X and Y, generate an output W, which is simply one of these inputs (say, Y) multiplied by just the sign of the other (say, X), that is W = Y × sign(X).
What is product modulator?
[′prä·dəkt ‚mäj·ə‚lād·ər] (electronics) Modulator whose modulated output is substantially equal to the carrier and the modulating wave; the term implies a device in which intermodulation between components of the modulating wave does not occur.
What is FET balanced modulator?
Since the modulating signal is applied 1800 out of phase at the gates , the FET currents due to modulating signal are equal but not opposite , hence do not cancel each other. Therefore , output is produced at the secondary of the transformer T3 . Thus DSB output is produced by FET balanced modulator.
Related questions
Related
Why is SSB not used for broadcasting?
In addition, the occupied spectrum is less than half that of a full carrier AM signal. SSB reception requires frequency stability and selectivity well beyond that of inexpensive AM receivers which is why broadcasters have seldom used it.
Related
What is a double balanced modulator?
Description: The DMM-2 series of Double Balanced Mixers covers the frequency range of 1 to 1400 MHz using selected diodes in the ring modulator to produce a low level mixer with high performance. Conversion Loss: 6.5 to 9.5 dB. IF Frequency Range: 0.0 to 500 MHz.
Related
What is meant by Delta Modulation?
A delta modulation (DM or Δ-modulation) is an analog-to-digital and digital-to-analog signal conversion technique used for transmission of voice information where quality is not of primary importance. ... The analog signal is approximated with a series of segments.
Related
Where is modulation done?
The modulation is done at the carrier signal while transmitting that signal. Hence the carrier signal properties get modulated. The receiver section demodulates the modulated signal to extract the original signal.
Related
What is the use of SSB Mcq?
Clarification: In an SSB or single sideband signal, the carrier is suppressed leaving the upper and lower sidebands. The resulting signal is referred to as the sideband suppressed carrier signal and one of the major benefits of this type of signal is that no power is wasted on the carrier.
Related
How does a balanced modulator work?
- A balanced modulator mixes the audio signal and the radio frequency carrier, but suppresses the carrier, leaving only the sidebands. The output from the balanced modulator is a double sideband suppressed carrier signal and it contains all the information that the AM signal has, but without the carrier.
Related
How to build an ideal amplitude modulation circuit?
- With ideal amplitude modulation, the circuit should produce sum and difference values while removing undesired sum and difference harmonics. We can build a simple AM circuit by applying modulation to the base of a single NPN bipolar transistor.
Related
What is modulation and how does it work?
- Modulation allows a small signal to control a larger signal. Communications systems transmit the modulated signal because the signal fits within the usable spectrum and power needed by the receiving circuit.
Related
What is a dsdsbsc modulator?
- DSBSC modulators are also called as product modulators as they produce the output, which is the product of two input signals.
