What is G93?

Inverse time is used to program simultaneous coordinated linear and coordinated rotary motion. In inverse time feed rate mode, an F word means the move should be completed in [1/F number] minutes. EXAMPLE – If the F number is 2.0, the move should be completed in half a minute.

What is G94 in CNC?

G94 (feed per minute) G-code is used to perform movements with work feed when the spindle is stationary, or when it is necessary to release the axis feed from the spindle revolutions (e.g.: when milling with motor driven tools or live tooling). Related: Live tooling on Haas CNC lathe machine program examples.

What is the difference between G94 and G95?

The G94/G95 command is modal and usually set very early in the program. Unless you are programming a lathe and use G94 to move around the part and G95 to cut the part, it is pretty much a set it and forget it command. Most CNC machines run boot program when they start up that sets the most common modal commands.Mar 2, 2010

What is G95 G-code?

When G95 is active, a spindle revolution will result in a travel distance specified by the Feed value.

What is G41 and G42?

G41 is left compensation and G42 is right compensation. On a CNC machine, it is usually recommended to use climb milling, this needs to be taken into consideration when writing our programs and deciding which direction to apply cutter compensation. When we wish to cancel the compensation, G40 is used to turn it off.

What is depth of cut?

Depth of Cut (t):

It is the total amount of metal removed per pass of the cutting tool. ... It can vary and depending upon the type of tool and work material. Mathematically, it is half of difference of diameters.

What is P and Q in cnc program?

R = Finishing allowance. X = Minor Diameter of the thread. Z = End position of the thread. P = Depth of thread. Q = Depth of first pass.

What is G90 in CNC?

The G Code G90 is used to define the absolute positioning system. When G90 is active the machine will read all dimensions and movements from the working datum position. ... 0; then the machine would move 100mm in the plus direction from the datum in both the X and Y axis. If we were to enter G00 X0.

What is G98 in G code?

Fanuc controls provide modal G codes that control where the tool ends up following a cycle. The G98 code causes the tool to return to the initial level after each canned cycle operation; the G99 code causes the tool to return to the R-point level after each canned cycle operation.Feb 16, 2021

How do I know if I have G41 or G42?

G41 will compensate to the left-hand side of the programmed path from the radius of the tool while, G42 will have the tool move along the right-hand side of the programmed path to compensate for the radius of the tool.Jan 29, 2021

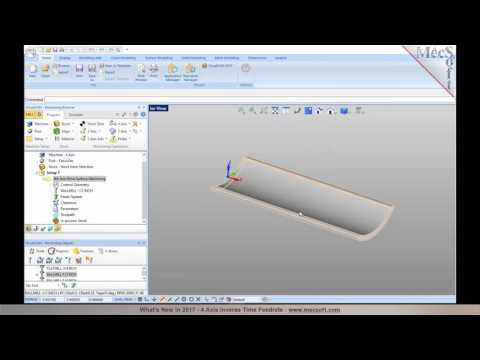

image-What is G93?
image-What is G93?
Related

What is G40 in program?

Cutter Compensation Cancellation (G40)

Function G40 is used to cancel cutter radius compensation initiated by G41 or G42. It should be programmed after the cut using the compensation is completed by moving away from the finished part in a linear (G01) or rapid traverse (G00) move by at least the radius of the tool.

Related

What is G-code used for?

Simply put, G-code is a software programming language used to control a CNC machine. And, even with complex CNC machining, G-code is written in a straightforward, logical way. A “G” is followed by a number, which is a command to change geometry. For instance, “G00” is a command for rapid movement.Jul 13, 2021

Related

What is the G93 inverse time feed mode (group 05)?

  • G93 Inverse Time Feed Mode (Group 05) This G code specifies that all F (feedrate) values are interpreted as strokes per minute. In other words the time (in seconds) to complete the programmed motion using G93 is, 60 (seconds) divided by the F value. G93 is generally used in 4 and 5-axis work when the program is generated using a CAM system.

Related

How to code inverse time in CNC?

  • When the numerator is 1 second the above F1400.168 would then be coded as 1 / (time = 5 / (700/60)), or F23.333. Most CNC controllers equipped with inverse time require a G93 to declare the feed mode on the initial move containing rotary motion.

Related

Why do we use inverse time instead of direct time?

  • The exact reasoning behind using the inverse value rather than the direct time in minutes or seconds is simply a historical matter. The 3D distance of the move is calculated in model coordinate space at the NC control point, not in machine coordinate space and not necessarily at the tool tip.

Related

Why do I have redundant F-codes for inverse time?

  • This situation normally happens when machining a cylindrical or spherical surface since the chordal moves are of equal distance and the velocity is constant. There is a spec setting that forces redundant F-codes for inverse time which should be set unless it is specifically known that the F-register is modal.
