## What is the contact ratio?

**CR = P/Pc or contact_ratio = Path of Contact/Circular Pitch**.

## Can a contact ratio be negative?

For the design of spur gears without addendum modification, additional increase of the contact ratio can be possible with negative displacements in the pinion tooth profile using values of addendum modification coefficients between **x1 = -0,5** and x1 = -0,7.Jan 1, 2009

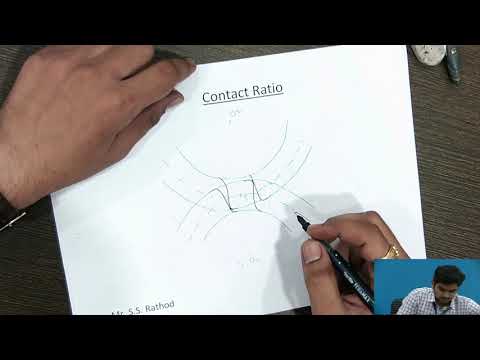

## What is the contact ratio?

Contact ratio is **average number of gear teeth in contact with one another as the gears are in operation**. Gear tooth profiles must be dimensioned in such a way that more than one pair of gears must be in contact with one another.

## What is value of contact ratio in gears?

Standard gears have a typical contact ratio of **1.2 to 1.6**. In their most basic form, gears are designed to transmit power, and HCR gears perform especially well.Apr 21, 2017

## What are limits of contact ratio?

Contact ratio: It is defined as the average number of tooth pairs in contact during one rotation. For continuous transmission of motion, at least one tooth of one wheel must be in contact with another tooth of the second wheel therefore contact ratio **must always be greater than or equal to 1**.

## How is gear ratio calculated?

The gear ratio is calculated by **dividing the output speed by the input speed (i= Ws/ We)** or by dividing the number of teeth of the driving gear by the number of teeth of the driven gear (i= Ze/ Zs).May 9, 2019

## What is meant by contact ratio in years?

The contact ratio is defined as the ratio of the length of arc of contact (from lowest point to the highest point at contact exit) to the circular pitch. In other words, contact ratio is **the average number of teeth in mesh during a contact cycle**; its value usually can span from 1.30–140.

## Can contact ratio be less than 1?

Transverse contact ratio less than 1 means that **the length of path of contact is less than one pitch**. In other words, there is a space in which teeth do not touch within the space of one pitch (Illustration 9). If this is a spur gear it will be unable to rotate at constant speed and noise will increase as a result.May 19, 2021

## What is transverse contact ratio?

Transverse contact ratio is **a value expressed by this calculation:** **Length of path of contact divided by Base pitch**. For example, if a transverse contact ratio is 1.5, therefore it should rotate and keep tooth contact with a single tooth and with two teeth, alternately.

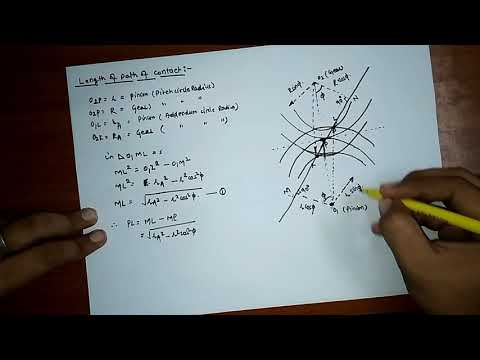

## What is line of contact in gears?

**The distance actually covered on the line of action** is then called line of contact. The line of contact begins at the intersection between the line of action and the addendum circle of the driven gear and ends at the intersection between the line of action and the addendum circle of the driving gear.

### Related questions

##### Related

### What is law of gearing?

Law of gearing states that **the common normal at the point of contact between a pair of teeth must always pass through the pitch point for all positions of mating gear**. ... This is a must condition for the two gears to perform properly.

##### Related

### What is contact ratio in gears Mcq?

Explanation: Contact ratio is **the of the arc od contact to the circular pitch**. The number of teeth in contact = arc of contact / circular pitch = path of contact / (circular pitch x cos φ). 3.

##### Related

### What should be the contact ratio if the time for one pair of teeth in contact is same as time for two pairs of teeth in contact?

Contact ratio should be always greater than unity to ensure continuous transmission of motion, for at least one pair of teeth should be in meshed condition for the mating gears. If contact ratio is **1.6**, it means that one pair of teeth is always in contact whereas two pairs of teeth are in contact for 60% of the time.

##### Related

### How do you calculate the contact ratio of a straight tooth?

- The transverse contact ratio (εα) for straight tooth bevel gears is calculated using the following formula: where: Rvk = tip diameter on the back cone for an equivalent spur gear (mm) Rvg = reference radius on the back cone for an equivalent spur gear (mm) Rv = back cone distance (mm)

##### Related

### What is contact ratio in gear?

- The
**contact ratio**is the numerical determination of the number of teeth on each gear when any gear set is in mesh. It accounts for the teeth that are sliding into the mesh, the teeth that are sliding out of the mesh, and those that are in full**contact**when the gears are engaged.

##### Related

### What is the difference between contact ratio and hunting ratio?

- The
**contact ratio**is a measure of overlapping tooth action which is necessary to assure smooth, continuous action. For example, as one pair of teeth passes out of action, a succeeding pair of teeth must have already started action. The hunting**ratio**is the**ratio**of the number of gear and pinion teeth.

##### Related

### How is the transverse contact ratio (εα) calculated?

- The transverse contact ratio (εα) for straight tooth bevel gears is calculated using the following formula: When the reference pressure angle is set to 20 degrees and module is set to 1, the values are calculated for straight tooth bevel gears produced in the Gleason® system in Table 2.

##### Related

### What is contact ratio in gear?What is contact ratio in gear?

The contact ratio is the numerical determination of the number of teeth on each gear when any gear set is in mesh. It accounts for the teeth that are sliding into the mesh, the teeth that are sliding out of the mesh, and those that are in full contact when the gears are engaged.

##### Related

### How do you calculate contact ratio on a calculator?How do you calculate contact ratio on a calculator?

To use this online calculator for Contact ratio, enter Path of Contact (P) and Circular Pitch (Pc) and hit the calculate button. Here is how the Contact ratio calculation can be explained with given input values -> 0.0036 = 0.018/5. What is Contact ratio?

##### Related

### What is contact ratio in dentistry?What is contact ratio in dentistry?

In its simplest form, contact ratio is the number of pairs of teeth in contact at one point in time. Some ways that contact ratio is changed is through the modification of the tooth profile, i.e. addendum modification, decreasing the pressure angle for a longer line-of-action, or increase the number of teeth.

##### Related

### What is the difference between contact ratio and hunting ratio?What is the difference between contact ratio and hunting ratio?

The contact ratio is a measure of overlapping tooth action which is necessary to assure smooth, continuous action. For example, as one pair of teeth passes out of action, a succeeding pair of teeth must have already started action. The hunting ratio is the ratio of the number of gear and pinion teeth.
