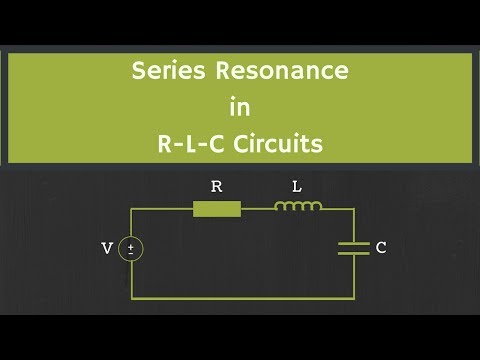

## What is the impedance of series RLC circuit?

Resonance occurs when XL = XC and the imaginary part of the transfer function is zero. At resonance, the impedance of the circuit is **equal to the resistance value as Z = R**.

## What is the impedance of the circuit?

Impedance (symbol Z) is **a measure of the overall opposition of a circuit to current**, in other words: how much the circuit impedes the flow of charge. It is like resistance, but it also takes into account the effects of capacitance and inductance. Impedance is measured in ohms ( ).

## How do you find total impedance in a series parallel circuit?

The second way to calculate total current and total impedance is to add up all the branch currents to arrive at total current (total current in a parallel circuit—AC or DC—is equal to the sum of the branch currents), then use Ohm's Law to determine total impedance from total voltage and total current **(Z=E/I)**.

## What is XL and XC in RLC circuit?

Circuits in which the inductive reactance equals the capacitive reactance (**XL=XC**) are called resonant circuits. They can be series or parallel circuits and either RLC or LC circuits. ... X_{L} and X_{C} are equal in value (100 Ω), resulting in a net reactance of zero ohm.

## How do you calculate ZT?

This complicates the calculation of the ZT value. In the simple definition equation: **ZT = Seebeck coefficient squared * absolute temperature * electrical conductivity / specific thermal conductivity** the material values must be taken into account as a function of temperature and time.

## Is reactance and impedance the same?

Impedance is **the combination of resistance and reactance**. ... Reactance is a property that opposes a change in current and is found in both inductors and capacitors. Because it only affects changing current, reactance is specific to AC power and depends on the frequency of the current.Sep 15, 2020

## What is the value of impedance of LR circuit?

A LR circuit consists of an inductor and a resistor in it. Where the inductor is denoted by L an the resistance is denoted by R . This type of combined circuit is applicable for AC currents and the combined effect of these two values is known as impedance and denoted by “Z” and the value for LR circuit is **√(R ^{2} +ω^{2} L^{2})**.

## Why is Z used for impedance?

Impedance (Z), in electrical devices, refers to **the amount of opposition faced by direct or alternating current when it passes through a conductor component**, circuit or system. Impedance is null when current and voltage are constant and thus its value is never zero or null in the case of alternating current.Jun 13, 2018

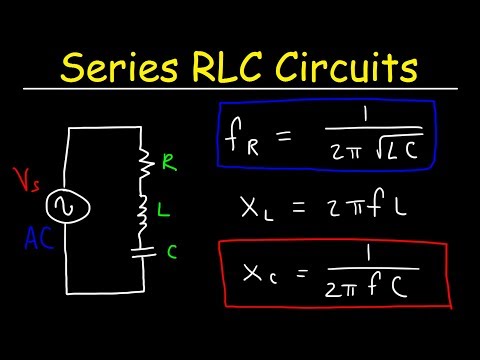

## What is a series RLC circuit?

An RLC circuit is **an electrical circuit** consisting of a resistor (R), an inductor (L), and a capacitor (C), connected in series or in parallel. ... In this role, the circuit is often referred to as a tuned circuit. An RLC circuit can be used as a band-pass filter, band-stop filter, low-pass filter or high-pass filter.

## How does a series RLC AC circuit works?

**When a resistor, inductor and capacitor are connected in series with the voltage supply**, the circuit so formed is called series RLC circuit. Since all these components are connected in series, the current in each element remains the same, Let V_{R} be the voltage across resistor, R. V_{L} be the voltage across inductor, L.Apr 16, 2021

### Related questions

##### Related

### What is the formula for total resistance in a series circuit?

- Series resistance is simply connecting the "out" side of one resistor to the "in" side of another in a circuit. Each additional resistor placed in a circuit adds to the total resistance of that circuit. The formula for calculating a total of n number of resistors wired in series is:
**Req = R1 + R2 + ....**

##### Related

### What is the formula for current in Series circuit?

- A series circuit is a circuit in which resistors are arranged in a chain, so the current has only one path to take. The current is the same through each resistor. The total resistance of the circuit is found by simply adding up the resistance values of the individual resistors: equivalent resistance of resistors in series :
**R = R1 + R2 + R3 + ...**

##### Related

### How do you calculate series circuit?

- To
**calculate****series**resistance, which you should use when connecting the "out" side of one resistor to the "in" side of another in a**circuit**, use the formula Req = R1 + R2 + .... Rn. In this formula, n equals the number of resistors in a**series**.

##### Related

### What is the voltage drop in a series circuit?

- A voltage drop is the amount the
**voltage lowers when crossing a component from the negative side to the positive side**in a series circuit. If you placed a multimeter across a resistor, the voltage drop would be the amount of voltage you are reading.
