## What is the junction equation?

## What is junction in Kirchhoff's?

Kirchhoff's junction rule states that at any junction ( node ) in an electrical circuit, **the sum of the currents flowing into that junction is equal to the sum of the currents flowing out of that junction**.

## What is Kirchhoff's 1st equation for this junction?

Kirchhoff's First Rule

Current is the flow of charge, and charge is conserved; thus, whatever charge flows into the junction must flow out. Kirchhoff's first rule requires that **I _{1} = I_{2} + I_{3}** (see figure). Equations like this can and will be used to analyze circuits and to solve circuit problems.

## What is the use of Kirchhoff's law?

Kirchhoff's laws are used **to help us understand how current and voltage work within a circuit**. They can also be used to analyze complex circuits that can't be reduced to one equivalent resistance using what you already know about series and parallel resistors.Dec 23, 2019

## How do I calculate current?

The current is the ratio of the potential difference and the resistance. It is represented as (I). The current formula is given as **I = V/R**. The SI unit of current is Ampere (Amp).

## What is Kirchhoff's law formula?

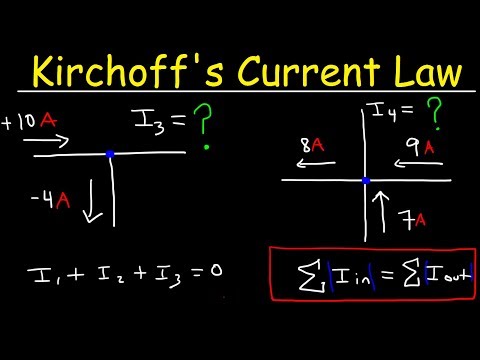

Kirchhoff's Current Law (KCL) states that the sum of all currents leaving a node in any electrical network is always equal to zero. It is based on the principle of conservation of electric charge. The law is also referred to as Kirchhoff's first law. In formula form this is given by: **n∑i=1Ii=0**.

## What is the current equation at junction C?

In other words the algebraic sum of ALL the currents entering and leaving a junction must be equal to zero as: **Σ I _{IN} = Σ I_{OUT}**. This idea by Kirchhoff is commonly known as the Conservation of Charge, as the current is conserved around the junction with no loss of current.

## What is meant by junction and loop?

A **point in a multi-loop circuit where a current splits or currents combine** is called a junction or node.Dec 14, 2020

## What is the current at a junction?

“At any node (junction) in an electrical circuit, the sum of currents flowing into that node is equal to the sum of currents flowing out of that node, or: The algebraic sum of currents in a network of conductors meeting **at** a point is zero”.

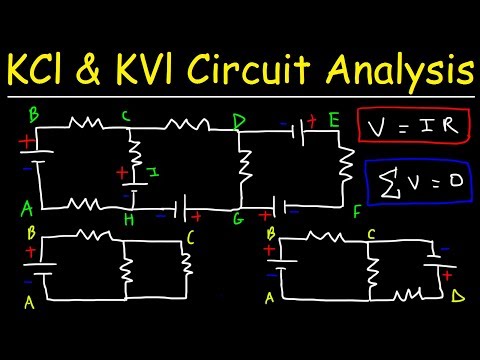

## How do you use KCL and KVL?

In the branch method, finding the currents through each branch carried by **applying KCL at every junction** and KVL in every loop of a circuit. In the loop current method, finding current through each independent loop is carried by applying KVL for each loop and counting all the currents in any element of a circuit.Jun 1, 2019

### Related questions

##### Related

### How do I calculate the junctionjunction temperature?

**Junction**temperature (or channel temperature) can be calculated from the ambient using the following**equation**. *Rth (j-a): Thermal resistance of "**junction**-to-ambient" varies depending on the type of circuit board.

##### Related

### What is the formula used in the p-n junction?

- The formula used in the p-n
**junction**depends upon the built-in potential difference created by the electric field is given as: \\(E_{0}=V_{T}ln[\\frac{N_{D}.N_{A}}{n_{i}^{2}}]\\) Where,

##### Related

### What is the sum of current entering and leaving a junction?

- In other words the algebraic sum of ALL the currents entering and leaving a junction must be equal to zero as: Σ IIN = Σ IOUT. This idea by Kirchhoff is commonly known as the Conservation of Charge, as the current is conserved around the junction with no loss of current.

##### Related

### How do you find the electric field at a junction?

- Using the density of the ionized donors at the junction (also referred to as space charge) ρ(x) we can calculate the built-in voltage and the electric field at the junction. ρ(x) ε =∫dx. ε.

##### Related

### What is the formula for junction temperature?What is the formula for junction temperature?

T J = T A + ( R θJA × P D )... where: T A = ambient temperature for the package ( °C ) R θJA = junction to ambient thermal resistance ( °C / W ) Many semiconductors and their surrounding optics are small, making it difficult to measure junction temperature with direct methods such as thermocouples and infrared cameras.

##### Related

### How do you find the current leaving a junction?How do you find the current leaving a junction?

Here in this simple single junction example, the current IT leaving the junction is the algebraic sum of the two currents, I1 and I2 entering the same junction. That is IT = I1 + I2. Note that we could also write this correctly as the algebraic sum of: IT – (I1 + I2) = 0.

##### Related

### How do you calculate the built-in voltage at the junction?How do you calculate the built-in voltage at the junction?

The loss of charge neutrality at the junction can be also expressed in terms of the potential, which is referred to as built-in voltage V bi. Using the density of the ionized donors at the junction (also referred to as space charge) ρ(x) we can calculate the built-in voltage and the electric field at the junction. ρ(x)

##### Related

### How do you use Kirchhoff's junction rule?How do you use Kirchhoff's junction rule?

Junction one occurs at node B, and junction two occurs at node E. Thus we can use Kirchhoff’s Junction Rule for the electrical currents at both of these two distinct junctions, for those currents entering the junction and for those currents flowing leaving the junction.
