What is the purpose of a high voltage transformer?

High voltage transformers convert voltages from one level or phase configuration to another, usually from higher to lower. They can include features for electrical isolation, power distribution, and control and instrumentation applications. ... Three-phase

The conductors between a voltage source and a load are called lines, and the voltage between any two lines is called line voltage. The voltage measured between any line and neutral is called phase voltage. For example, for a 208/120 volt service, the line voltage is 208 Volts, and the phase voltage is 120 Volts. › wiki › Three-phase_electric_power
transformers are connected in delta or wye configurations.

What are the 3 types of transformers?

There are three primary types of voltage transformers (VT): electromagnetic, capacitor, and optical.

What is high voltage and low voltage in transformer?

According to American National Standard Institute(ANSI), high voltage transformers can handle a minimum of 115000 to a maximum of 11,00,000 volts; medium voltage transformers has a limited capacity of 2400 to 69000 volts; and low voltage transformers have a minimum capacity of 240 volts and a maximum of 600 volts.Feb 11, 2021

What transformer is also called a neighborhood transformer?

A distribution transformer or service transformer is a transformer that provides the final voltage transformation in the electric power distribution system, stepping down the voltage used in the distribution lines to the level used by the customer.

How much power does a transformer consume when idle?

They also waste power when powering a device. If you have ever felt one and it was warm, that is wasted energy turned to heat. The power consumption is not large -- on the order of 1 to 5 watts per transformer.

Which transformer is used in home?

In distribution networks, the step-down transformer is commonly used to convert the high grid voltage to low voltage that can be used for home appliances.

How do I know what type of transformer I have?

The ratio between the number of actual turns of wire in each coil is the key in determining the type of transformer and what the output voltage will be. The ratio between output voltage and input voltage is the same as the ratio of the number of turns between the two windings.

What is an ideal transformer?

An ideal transformer is an imaginary transformer which does not have any loss in it, means no core losses, copper losses and any other losses in transformer. Efficiency of this transformer is considered as 100%.Mar 15, 2013

How can you tell if a transformer is LV and HV?

For, smaller size tapping transformers used in electrical or electronic devices, we can identify the LV and HV sides by observing the terminals. Generally, the HV sides contain only two terminals whereas the LV side contains more than two terminals.Feb 23, 2021

What's considered high voltage?

High voltage is classified as having the potential to cause injury or harm. The ratings of the International Electrotechnical Commission (IEC) consider high voltage to be more than 1,500 volts for DC (direct current) circuits and 1,000 volts for AC (alternating current) circuits.Aug 15, 2017

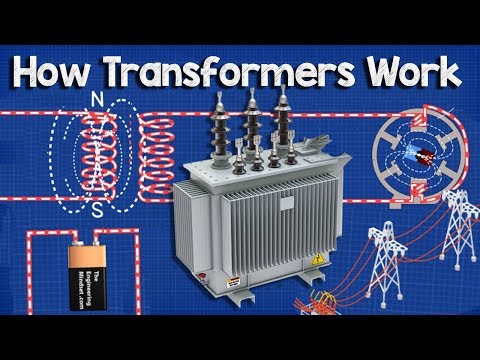

image-What is the purpose of a high voltage transformer?

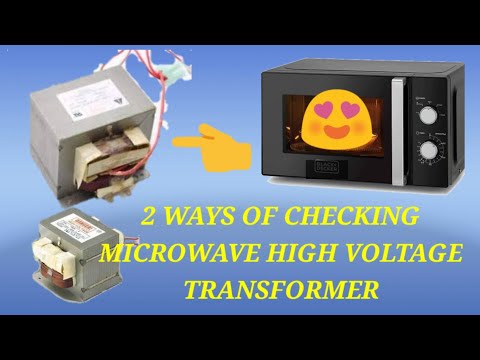

image-What is the purpose of a high voltage transformer?

Is 240v high voltage?

In both the United States and Canada, the nominal voltage is 120/240, while the rated voltage is usually 125/250. ... High Voltage (HV) on the other hand is defined as anything above 100V that can potentially cause harm.Jul 16, 2020


Does a transformer use AC or DC?

A transformer is a device which step-up or step-down the level of AC current or voltage without changing the primary (i.e. input source) frequency. Transformer only works on AC and can't be operated on DC i.e. it has been designed to be operated only and only on alternating current and voltage.


Do transformers work with AC or DC?

Transformers do not pass direct current (DC), and can be used to take the DC voltage (the constant voltage) out of a signal while keeping the part that changes (the AC voltage). ... In the electrical grid transformers are key to changing the voltages to reduce how much energy is lost in electrical transmission.Apr 28, 2020


How many houses are in a transformer?

That single transformer feeds 7 houses (was 4 way back when, but 3 decent sized ones have been added in the neighborhood in the last 10 years).Feb 27, 2016


Why is a transformer rated in kVA?

  • Transformer ratings are known to be measured in kVA and not in kW. A transformer's rating or the rating of any electrical machine shows its ability to carry mechanical load without showing any signs of overheating. Rises in temperature, which are known to be major threats to insulation, comes up as a result of internal loss within the machine.


How do you calculate kVA rating for transformer?

  • Calculate power rating in KVA when you know power in watts and the power factor. Use the formula: P (KVA) = P (watts)/pf where pf is the power factor of the power supply.


What is 10 kVA transformer?

  • 10 kva is a pretty large transformer, of the type used by utility companies for power distribution. 10 kva is a common size in the USA for converting the 2 KV high line voltage to the 240 volt home service drop.


What is transformer rating based on?

  • In the U.S., transformers are rated based on the power output they are capable of delivering continuously at a specified rated voltage and frequency under “usual” operating conditions without exceeding prescribed internal temperature limitations.
